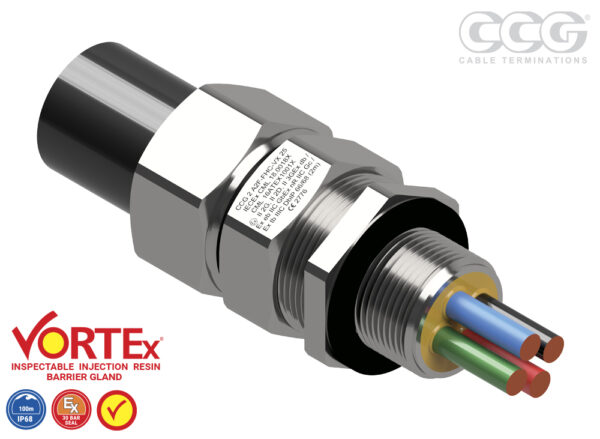

A2F-FHC VX (VORTEx)



A2F-FHC VX (Vortex)









Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
Barrier Gland for Unfilled Unarmoured Cable Housed In Conduit


Features and Benefits

  • For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • For use with all types of unarmoured cable housed in rigid or flexible conduit.
  • Fitted with a rotating female conduit coupler.
  • Outer seal grips the cable, giving superior cable retention and IP rating.
  • Instantly mixed and injected Resin forms a 100% barrier seal around the individual cores of the cable.
  • Prevents explosive gases and/or liquids transmitting down the cable.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
  • Complete with thread sealing gasket.

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Certification


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • EAC
  • SANS
  • INGRESS PROTECTION
  • DTS 01 DELUGE
