Product Description

Ex eb IIC, Ex ta IIIC

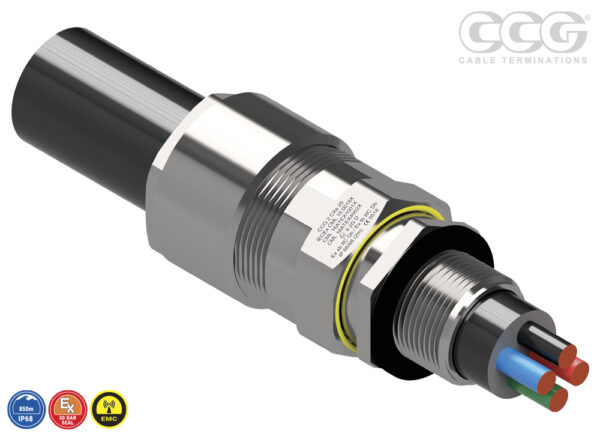

Variable Deluge Seal™ for Braided and Steel Tape Cable


Features and Benefits

  • For indoor, outdoor, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Two-piece handling, no loose parts.
  • Freely rotating captive cone and inspectible cone ring, providing an armour clamp and earth bond without twisting the armouring.
  • With a patented Variable Deluge Seal™ as a standard.
  • Provides a seal on the outer sheath of the cable sealing to IP68.
  • Patented disconnect armoured clamp system for ease of inspection.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Certification


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • INMETRO
  • EAC
  • SANS
  • INGRESS PROTECTION
  • DTS 01 DELUGE
  • MARINE
