A2F-HTF-FC - CCG
Product Description
Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC

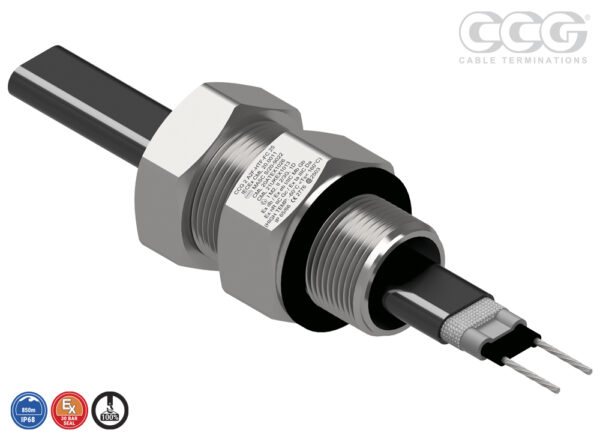

Compression Gland with Conduit Connection for Single or Multi-Core Unarmoured Heat Trace Cable
Features and Benefits
- Passes the IECEx / ATEX / UKEX 100% pull test, so no additional cable clamping is required.
- For indoor, outdoor, Group I, II, Ill, Zone 1, 2, 20, 21 and 22 hazardous areas.
- Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection, and an IP rating.
- Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request. (Note: Aluminium is not suitable for Group I applications.)
- With an M25 female thread to allow the attachment of flexible conduits. Alternative thread sizes can be provided on request.
- Supplied with a thread-sealing gasket with parallel threads only.
Optional Accessories / Tools
- Accessories
- Tools
- Adaptor / Reducer
Tools
Technical Data
Certification
- IEC / BS EN
- IECEx
- ATEX
- UKEX
- INMETRO
- SANS
- INGRESS PROTECTION
- DTS 01 DELUGE
IEC / BS EN
IECEx
INMETRO
SANS
INGRESS PROTECTION
DTS 01 DELUGE
