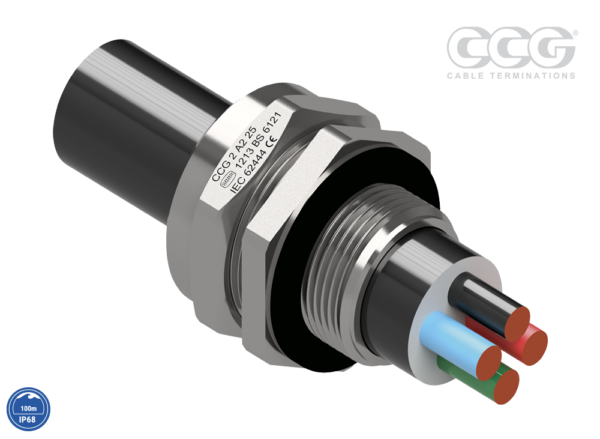

A2 Compression Gland

Product Description

Single Compression Gland for Unarmoured Cable


Features and Benefits

  • For indoor and outdoor use.
  • Seals the cable sheath to IP66/68.
  • Specially formulated elastomeric seals.
  • Precision manufactured from high-quality brass (Nickel Plated) available in aluminium or stainless steel 316/316L on request.
  • Complete with heavy-duty locknut.
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Design Standard


  • BS 6121: Part 1
  • IEC/BS EN 62444
  • EN 50262
  • IEC 60529
  • SANS 62444
  • SANS 1213
  • MARINE
  • London Underground
BS 6121: Part 1
IEC/BS EN 62444
EN 50262
SANS 62444
London Underground
