Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

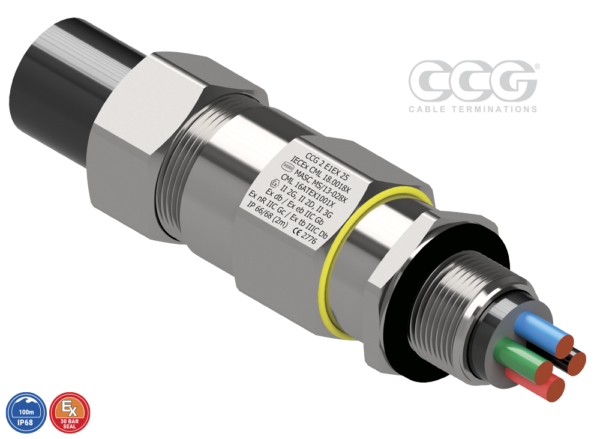

Variable Deluge Seal™ for Steel and Aluminium Armoured Cable

• For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
• Two part handling, no loose parts.
• Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire and aluminium armour.
• Patented disconnect system allows for inspection of armour clamp and inner seal after assembly.
• With a patented Variable Deluge Seal™ as standard.
• Factory fitted with a specially formulated elastomeric seal for Built-in Safety™, seals on the inner and outer sheath of the cable to IP65/66/68.
• Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request.
• Supplied with a thread sealing gasket (parallel threads only).
