Ex Corrosion Guard Lead Seal

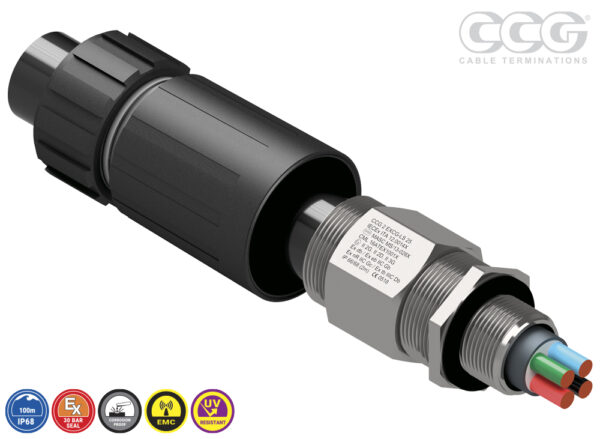

EX Corrosion Guard Lead Seal Gland

Product Description

Ex db IIC, Ex eb IIC, Ex tab IIIC, Ex nR IIC
Outer Seal for Lead Sheathed Cable


Features and Benefits

  • For highly corrosive, wet locations, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Cable gland is precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™).
  • Lead seals are supplied to match the exact dimensions of cable given by the customer.
  • Two-part handling, freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond for steel wire armour.
  • Corrosion Guard® screws onto the gland body and seals over the outer sheath of the cable giving an IP68 and deluge proof seal protecting the armour and metal parts of the gland.
  • Supplied with a thread sealing gasket.

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Certification


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • INMETRO
  • EAC
  • SANS
  • INGRESS PROTECTION
  • DTS 01 DELUGE
  • MARINE
