E1EX Lead Seal

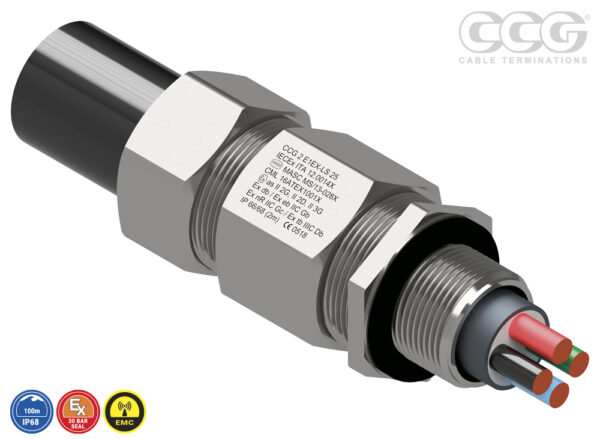

E1EX Lead Seal Cable Gland

Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
with Variable Deluge Seal™ for Lead Sheathed Armoured Cable


Features and Benefits

  • For use indoors, outdoors Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Two-part handling, no loose parts.
  • Provides 360° earthing to lead sheath.
  • Freely rotating captive cone ring, providing an armour clamp and earth bond without twisting the armour wires.
  • Freely rotating captive cone and inspectible cone ring an armour clamp and earth bond for steel wire armour.
  • With an internal deluge seal as standard.
  • Factory fitted a specially formulated elastomeric seal for Built-in Safety™, lead seals on the lead sheath to IP65/66/68.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer


Installation Video
