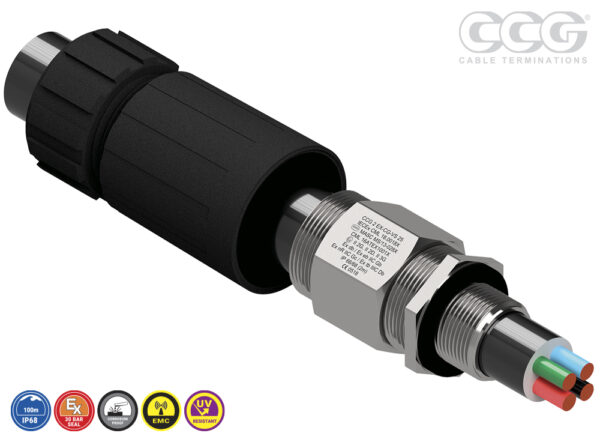

Ex Corrosion Guard VS - CCG

Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
Sealing on outer sheath of f Steel Wire Armour, Aluminium, Copper Tape or Lead Sheathed Cable


Features and Benefits

  • For highly corrosive, wet locations, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Factory-fitted captive elastomeric seals for Built-in Safety™ .
  • A two-part handling, freely rotating captive cone and inspectable cone ring provides an armour clamp and earth bond on steel wire and aluminium armour.
  • Corrosion Guard® screws onto the gland body and seals over the outer sheath of the cable, giving an IP68 and deluge-proof seal protecting the armour and metal parts of the gland.
  • Provides 360° earthing to copper tape or lead sheath.
  • Cable Gland is precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™).
  • Supplied with a thread-sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Certification


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • INMETRO
  • EAC
  • SANS
  • INGRESS PROTECTION
  • DTS 01 DELUGE
  • MARINE
