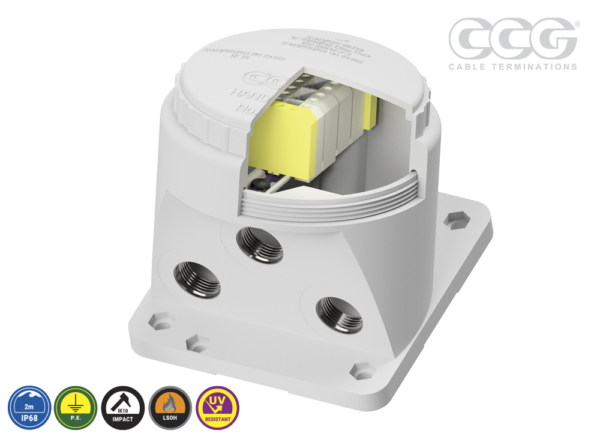

Bottom Entry Angle™ Box



Bottom Entry Angle Junction Box







Product Description

for General Industrial and Mining Electrical Installations


Features and Benefits

  • Bottom Entry Angle™ Box for industrial lighting applications.
  • Screw-on lid provides ease of installation.
  • Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • Only approved CCG cable glands and terminals must be used.
  • Bottom Entry Angle™ Box is angled to allow ease of termination and inspection.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries required.
  • Internal earthing to all entries and rail.
  • Red Fire Rated Box for emergency circuits available (925°C for 3-hours).

Optional Accessories / Tools


  • Accessories
  • Tools
Accessories
Tools

Technical Data

Certification


  • IEC / BS EN
  • SANS
  • IMPACT PROTECTION IK10
  • INGRESS PROTECTION
  • DTS 01 DELUGE
  • MARINE
  • LONDON UNDERGROUND
IEC / BS EN
IMPACT PROTECTION IK10
INGRESS PROTECTION
DTS 01 DELUGE
LONDON UNDERGROUND
