Product Description

Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC , Ex nR IIC

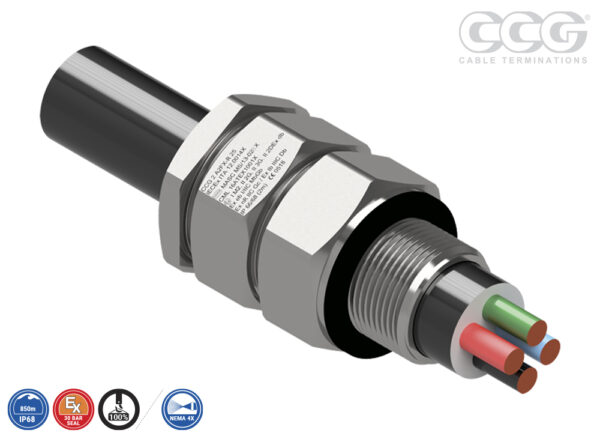

Double Compression Gland for Unarmoured Cable


Features and Benefits

  • Passes the IECEx / ATEX / UKEX 100% pull test so no additional cable clamping is required.
  • For indoor, outdoor, Group I, II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Fitted with two specially formulated elastomeric displacement seals, for dual redundancy and superior cable retention, explosion protection and IP rating.
  • Precision manufactured from high quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request. (Note: Aluminium not suitable for Group I applications).
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer
