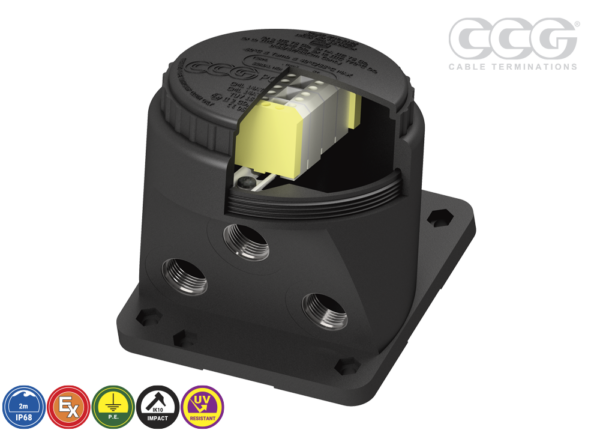

Bottom Entry Angle Junction Box

Product Description

Ex eb I, Ex eb IIC, Ex ec IIC, Ex tb IIIC
IP66/68 2m
for Hazardous Area Installations


Features and Benefits

  • Bottom Entry Angle™ Box for use in Group I mining (low impact areas), Group II and Group III applications.
  • Bottom Entry Angle™ Box for hazardous area lighting applications.
  • Screw-on lid provides ease of installation. Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • Bottom Entry Angle Box™ is angled to allow ease of termination and inspection.
  • Only approved CCG cable glands and Ex e terminals must be used.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries required.
  • Internal earthing to all entries and rail.

Optional Accessories / Tools


  • Blanking Plug
  • Box Spanner
Blanking Plug
Box Spanner
