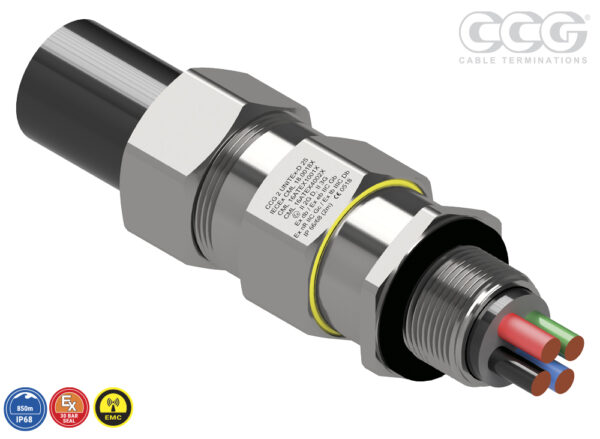

UNITEx D Captive Component Gland

Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
WITH VARIABLE DELUGE SEAL™ for Multi Armoured Cable


Features and Benefits

  • Indoors and outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Two-part handling, no loose parts
  • A freely rotating captive cone and inspectible cone ring provide an armour clamp and earth bond on steel wire, aluminium, braid, and tape armour.
  • Patented disconnect system that allows inspection of armour clamp and inner seal after assembly.
  • With a patented Variable Deluge Seal™ as a standard.
  • Factory-fitted with a specially formulated elastomeric seal for Built-in Safety™, it seals on the inner and outer sheath of the cable to IP65/66/68.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™), available in aluminium or stainless steel 316/316L on request.
  • Supplied with a thread-sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer
