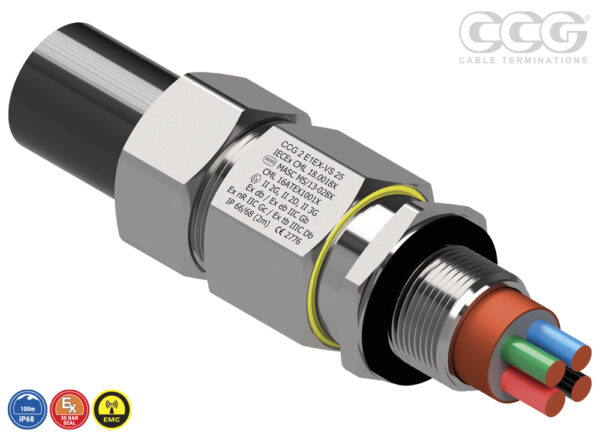

E1EX-VS

E1EX VS Captive Component Gland

Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
Variable Delugel Seal™ for SWA, Copper Tape or Lead Sheathed Cable


Features and Benefits

  • For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Two-part handling, no loose parts.
  • Freely rotating captive cone and inspectible cone ring providing an armour clamp and earth bond without twisting the armour wires.
  • Patented disconnect system that allows inspection of armour clamp and inner seal after assembly.
  • Provides 360° earthing to copper tape or lead sheath.
  • With a patented Variable Deluge Seal™ as standard.
  • Factory fitted with a specially formulated elastomeric seal for Built-in Safety™, seals on the inner and outer sheath of the cable.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer
