D1EX VX (VORTEx) - CCG

Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

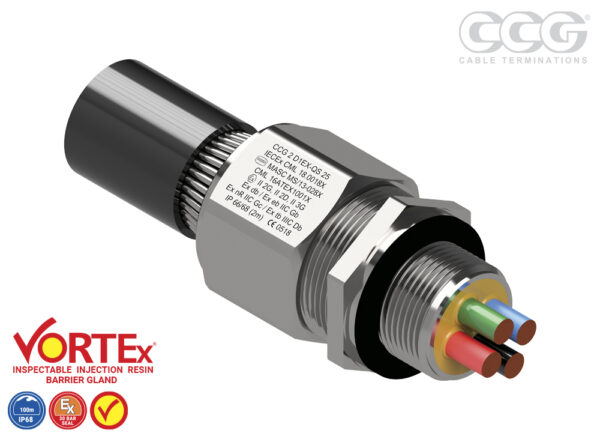

VORTEx Barrier Gland, Inner Seal for Unfilled Steel Wire Armoured Cable


Features and Benefits

  • For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • For unfilled and multicore cables in Ex d applications. See IEC 60079-14 and IEC 61892-7.
  • Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour.
  • Specially formulated captive elastomeric seal for Built-in Safety™, seals on the inner sheath of the cable IP65/66/68.
  • Instantly mixed and injected Resin forms a 100% barrier seal around the individual cores of the cable.
  • Prevents explosive gases and/or liquids transmitting down cable.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™).
  • Supplied with a thread-sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Certification


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • INMETRO
  • EAC
  • SANS
  • INGRESS PROTECTION
  • DTS 01 DELUGE
  • MARINE
