FLP - CCG

Product Description

Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC

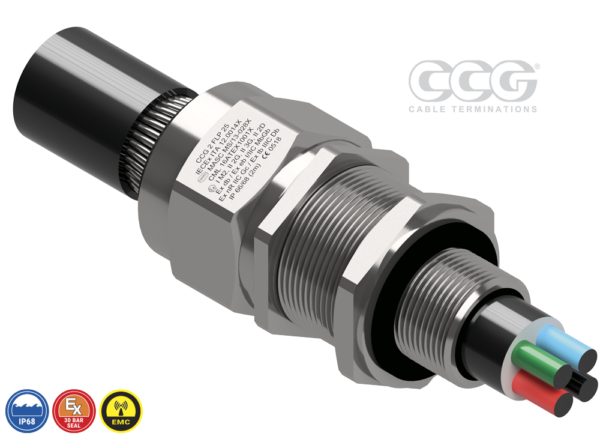

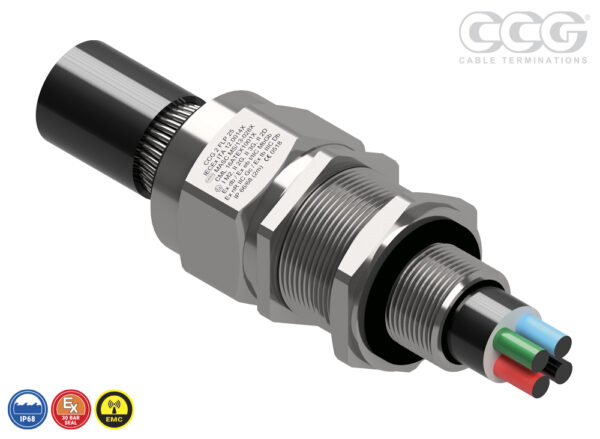

Inner Seal for Steel Wire Armoured Cable


Features and Benefits

  • For Group I underground mines, Group II, III, Zone 1, 2, 21 and 22 hazardous areas.
  • Two-part handling, freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on the steel wire armour.
  • Factory fitted with a specially formulated elastomeric seal provides Built-in Safety™.
  • No loose parts that can get lost.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer
Accessories
Tools
Adaptor / Reducer

Technical Data

Certification


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • INMETRO
  • EAC
  • SANS
  • INGRESS PROTECTION
  • DTS 01 DELUGE
  • MARINE
