IPlus Corrosion Guard™ - CCG

Product Description

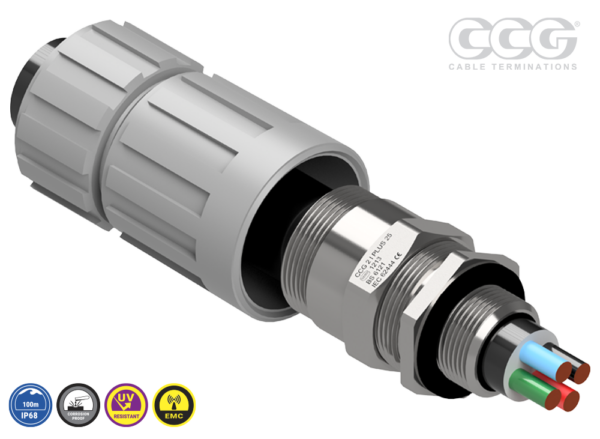

Captive Component Gland® for Steel Wire Armoured Cable

Features and Benefits

  • For highly corrosive and wet locations.
  • Factory fitted captive elastomeric seals for Built-in Safety™.
  • The screw-on Corrosion Guard™ is manufactured from non-corrosive material to protect the armour and metal parts of the gland.
  • The Corrosion Guard™ screws onto the gland body and seals over the outer sheath of the cable giving an IP66/68 and deluge proof seal.
  • Cable Gland is precision manufactured from high-quality brass (nickel-plated).
  • Complete with sealing gasket and with a heavy-duty locknut.

Optional Accessories / Tools

  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Design Standard

  • BS 6121: Part 1
  • IEC/BS EN 62444
  • EN 50262
  • IEC 60529
  • SANS 62444
  • SANS 1213
  • London Underground
BS 6121: Part 1
IEC/BS EN 62444
EN 50262
SANS 62444
London Underground
