VARITEx™ D - CCG
Product Description
Ex db IIC,Ex eb IIC,Ex ta IIIC,Ex nR IIC

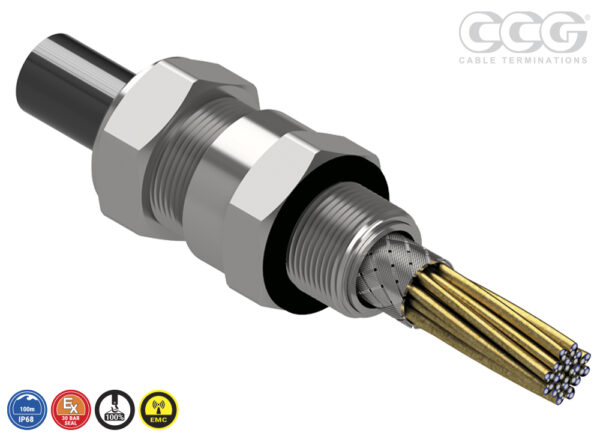

COMPRESSION GLAND for use with Braid or Copper Tape Screened Cables
Features and Benefits
- For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
- Passes the IECEx / UKEX / ATEX 100% pull test, so no additional cable clamping is required.
- EMC compliance enhanced by an integral and automatic 360°earth connection to the cable braid or copper tape screening
- Braid can be cut to length and earthed in the gland only or left uncut and earthed in the gland and the enclosure.
- Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating.
- Certified for use with all Ex Protection concepts.
- Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request.
- Supplied with a captive thread sealing gasket (parallel threads only).
Optional Accessories / Tools
- Accessories
- Tools
- Adaptor / Reducer
Tools
Technical Data
Certification
- IEC / BS EN
- IECEx
- ATEX
- UKEX
- INMETRO
- EAC
- INGRESS PROTECTION
- DTS 01 DELUGE
IEC / BS EN
IECEx
INMETRO
INGRESS PROTECTION
DTS 01 DELUGE
