Product Description

Ex db I/ IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC

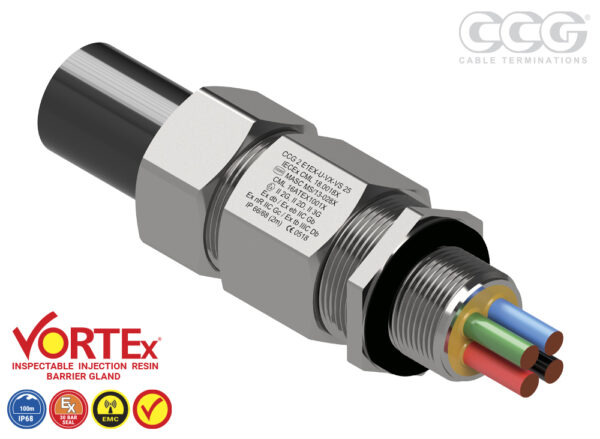

Dual Seal for Unfilled Multi Armoured Copper Tape or Lead Sheathed Cable

Features and Benefits

  • For indoors, outdoors, Group I, II , III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7
  • Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond for steel wire armour and aluminium armour.
  • Provides 360° earthing to copper tape or lead sheath.
  • Instantly mixed and injected Resin forms a 100% barrier seal around the individual cores of the cable.
  • Prevents explosive gases and/or liquids transmitting down cable.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools

  • Accessories
  • Tools
  • Adaptor / Reducer
