Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

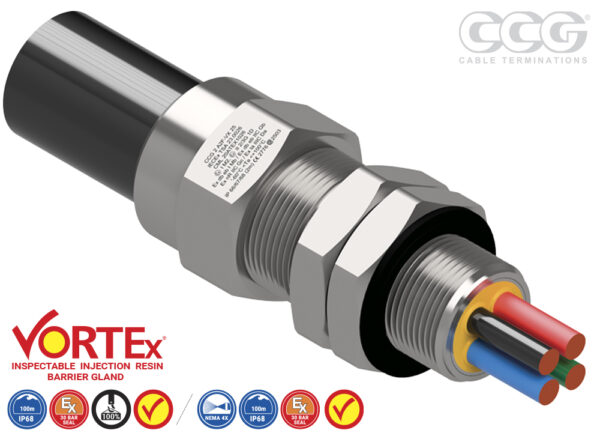

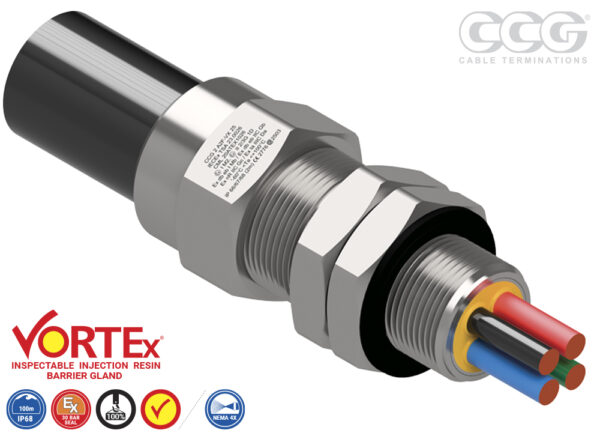

BARRIER COMPRESSION GLAND for Unfilled Unarmoured Cable

Features and Benefits

  • Passes the IECEx, UKEX, and ATEX 100% pull test, so no additional cable clamping is required.
  • Indoor, outdoor, Group I, II, III, Zone 1, 2, 20, 21 and 22 hazardous area.
  • Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection, and IP rating.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request. (Note: Aluminium is not suitable for Group I applications.)
  • Supplied with a thread-sealing gasket (parallel threads only).

Optional Accessories / Tools

  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • SANS
