Product Description

Ex eb IIC, Ex nR IIC, Ex ta IIIC

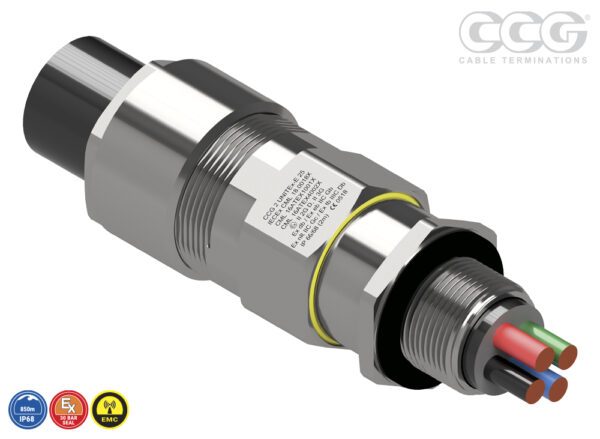

Variable Deluge Seal™ for Multi Armoured and Marine Shipboard Cables

Features and Benefits

  • For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • Two-part handling, no loose parts.
  • Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour, aluminium wire armour, tape armour, braid wire armour cables.
  • With a patented Variable Deluge Seal™ as standard.
  • Patented disconnect system that allows inspection of armour clamp and inner seal after assembly.
  • Factory fitted with specially formulated elastomeric seals for Built-in Safety™.
  • Seals on the outer sheath of the cable to IP65/66/68.
  • Unique low-contact IP68 inner seal making this gland suitable for use with NEK 606 marine cables susceptible to cold flow.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™) available in stainless steel 316/316L on request.
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools

  • Accessories
  • Tools
  • Adaptor / Reducer
