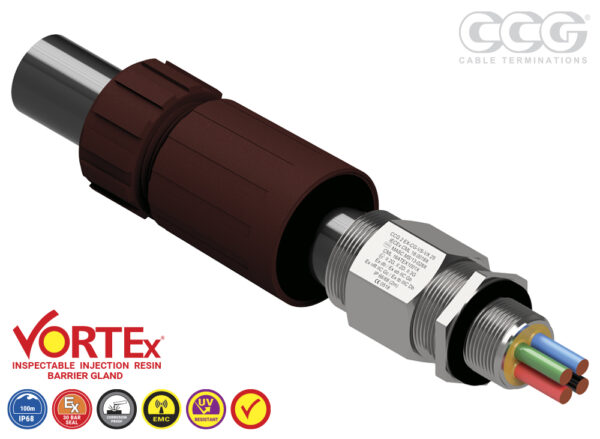

Ex Corrosion Guard VS VX (VORTEx)

Ex Corrosion Guard VS Vortex Barrier Gland

Product Description

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC
Sealing on Outer Sheath of Unfilled SWA, Aluminum, Copper Tape or Lead Sheathed Cable


Features and Benefits

  • For highly corrosive, wet locations, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
  • For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7.
  • Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour and aluminium armour.
  • Corrosion Guard® screws onto the gland body and seals over the outer sheath of the cable giving an IP68 and deluge proof seal protecting the armour and metal parts of the gland.
  • Provides 360° earthing to copper tape or lead sheath.
  • Instantly mixed and injected Resin forms a 100% barrier seal around the individual cores of the cable.
  • Prevents explosive gases and/or liquids transmitting down the cable.
  • Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™).
  • Supplied with a thread sealing gasket (parallel threads only).

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Certification


  • IEC / BS EN
  • IECEx
  • ATEX
  • UKEX
  • INMETRO
  • EAC
  • SANS
  • INGRESS PROTECTION
  • DTS 01 DELUGE
  • MARINE
