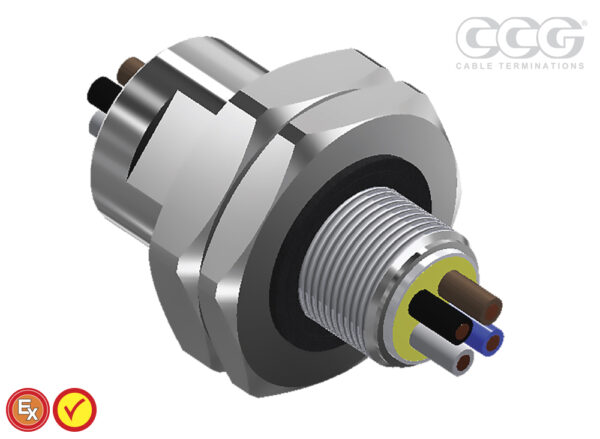

Swivel Barrier Adaptor

for General Industrial and Hazardous Area Installations

Precision machined from high-quality brass (Marine Grade Electroless Nickel Plated™). Available in aluminium or stainless steel 316/316L on request. (Note: Aluminium not suitable for Group I use.)
A resin barrier and the serrated flamepath joint between the male and female threads provide Ex d protection from both sides of the swivel barrier adaptor.
The liquid resin seals around the conductors, providing an Ex d barrier.
Provides the dual function of a conduit connector and a sealing fitting for Ex d conduit installations.
Allows independent tightening of male and female threads. Male parallel threads are supplied with a sealing gasket as standard.
Can be used to convert thread types and to connect conduit to equipment.
